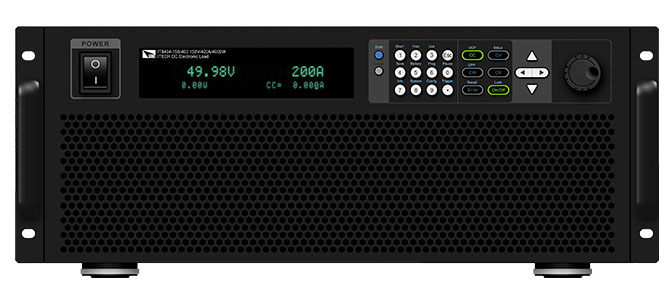

IT8400 High Performance DC Electronic Load
IT8400 high-performance DC electronic load has two voltage levels, 600V and 1200V. It supports master-slave connection in parallel with power from 6 kW to 600 kW, and is capable of fast double power loading. It has three current readback ranges with a resolution of up to 40uA. IT8400 has faster loop response and current rising and falling speed. It supports up to 8 working modes. It also has dynamic mode, List, OCP, OPP test, automatic test and battery test functions. IT8400 has built-in CAN, LAN, GPIB, USB, RS232 and analog interfaces, suitable for remote control and system building. In addition, the full protection function makes it well matched with the test of fuel cell, power battery discharge, DC charging pile, BOC, power electronics, solar, automotive high-voltage components, DC-DC, motor and so on.
Find a product
Model
Voltage
Current
Power
Resolution
Accuracy
Interface
Size
IT8406-600-150
600 V
150 A
6 kW
1 mV/ 0.1 mA
±(0.05%+0.05%FS)/ ±(0.05%+0.1%FS)
Built-in LAN/USB/RS232/GPIB/CAN/External analog control interface
inquiry
IT8406-1200-75
1200 V
75 A
6 kW
10mV/ 40uA
±(0.05%+0.05%FS)/ ±(0.05%+0.1%FS)
Built-in LAN/USB/RS232/GPIB/CAN/External analog control interface
inquiry
IT8412-600-300
600 V
300 A
12 kW
1 mV/ 0.2 mA
±(0.05%+0.05%FS)/ ±(0.05%+0.1%FS)
Built-in LAN/USB/RS232/GPIB/CAN/External analog control interface
inquiry
IT8412-1200-150
1200 V
150 A
12 kW
10mV/ 80uA
±(0.05%+0.05%FS)/ ±(0.05%+0.1%FS)
Built-in LAN/USB/RS232/GPIB/CAN/External analog control interface
inquiry
IT8418-600-450
600 V
450 A
18 kW
1 mV/ 0.3 mA
±(0.05%+0.05%FS)/ ±(0.05%+0.1%FS)
Built-in LAN/USB/RS232/GPIB/CAN/External analog control interface
inquiry
IT8418-1200-225
1200 V
225 A
18 kW
10mV/ 120uA
±(0.05%+0.05%FS)/ ±(0.05%+0.1%FS)
Built-in LAN/USB/RS232/GPIB/CAN/External analog control interface
inquiry
IT8424-600-600
600 V
600 A
24 kW
1 mV/ 0.4 mA
±(0.05%+0.05%FS)/ ±(0.05%+0.1%FS)
Built-in LAN/USB/RS232/GPIB/CAN/External analog control interface
inquiry
IT8424-1200-300
1200 V
300 A
24 kW
10mV/ 160uA
±(0.05%+0.05%FS)/ ±(0.05%+0.1%FS)
Built-in LAN/USB/RS232/GPIB/CAN/External analog control interface
inquiry
IT8430-600-750
600 V
750 A
30 kW
1 mV/ 0.5 mA
±(0.05%+0.05%FS)/ ±(0.05%+0.1%FS)
Built-in LAN/USB/RS232/GPIB/CAN/External analog control interface
inquiry
IT8430-1200-375
1200 V
375 A
30 kW
10mV/ 200uA
±(0.05%+0.05%FS)/ ±(0.05%+0.1%FS)
Built-in LAN/USB/RS232/GPIB/CAN/External analog control interface
inquiry
IT8436-600-900
600 V
900 A
36 kW
1 mV/ 0.6 mA
±(0.05%+0.05%FS)/ ±(0.05%+0.1%FS)
Built-in LAN/USB/RS232/GPIB/CAN/External analog control interface
inquiry
IT8436-1200-450
1200 V
450 A
36 kW
10mV/ 240uA
±(0.05%+0.05%FS)/ ±(0.05%+0.1%FS)
Built-in LAN/USB/RS232/GPIB/CAN/External analog control interface
inquiry
IT8442-600-1050
600 V
1050 A
42 kW
1 mV/ 0.7 mA
±(0.05%+0.05%FS)/ ±(0.05%+0.1%FS)
Built-in LAN/USB/RS232/GPIB/CAN/External analog control interface
inquiry
IT8442-1200-525
1200 V
525 A
42 kW
10mV/ 280uA
±(0.05%+0.05%FS)/ ±(0.05%+0.1%FS)
Built-in LAN/USB/RS232/GPIB/CAN/External analog control interface
inquiry
IT8448-600-1200
600 V
1200 A
48 kW
1 mV/ 0.8 mA
±(0.05%+0.05%FS)/ ±(0.05%+0.1%FS)
Built-in LAN/USB/RS232/GPIB/CAN/External analog control interface
inquiry
IT8448-1200-600
1200 V
600 A
48 kW
10mV/ 320uA
±(0.05%+0.05%FS)/ ±(0.05%+0.1%FS)
Built-in LAN/USB/RS232/GPIB/CAN/External analog control interface
inquiry
IT8454-600-1350
600 V
1350 A
54 kW
1 mV/ 0.9 mA
±(0.05%+0.05%FS)/ ±(0.05%+0.1%FS)
Built-in LAN/USB/RS232/GPIB/CAN/External analog control interface
inquiry
IT8454-1200-675
1200 V
675 A
54 kW
10mV/ 360uA
±(0.05%+0.05%FS)/ ±(0.05%+0.1%FS)
Built-in LAN/USB/RS232/GPIB/CAN/External analog control interface
inquiry
Show all
* The above specifications are subject to change without prior notice.
Product Features
 Max.Voltage : 1200V
 Current range: 1.5A~15,000 A
 Power extended to 600 kW through master-slave connection in parallel
 High-precision three current measurement ranges with resolution up to 40uA
 Fast double power loading capability (<3 s)
 25kHz fast dynamic mode, current rising and falling time is adjustable
 Provide 8 working modes: CC, CV, CR, CP, CC+CV, CV+CR,CR+CC, CP+CC
 1 kHz continuous sampling rate
 List programming
 The battery discharge function is used to test energy storage devices such as batteries and super capacitors
 CV loop speed is adjustable to match different power supplies
 500 kHz voltage and current sampling rate
 Time measurement, OCP/OPP test short circuit simulation, automatic test
 Soft start and soft shutdown to prevent voltage fluctuations during on/off
 I-monitor function
 Full protection: OVP, UVP, OCP, OPP, OTP, current oscillation protection, current limit, power limit, reverse alarm, etc.
 Power-off retention memory function, recording up to 100 groups data
 Independent control, easy to maintain and install.
 Built-in standard LAN, USB, RS232, GPIB, CAN and analog, IO interface
 LabVIEW driver and SCPI protocol
Functions and Advantages


Fast loading with double power

The input voltage of IT8400 DC electronic load can reach 1200V. It has a fast double power loading capacity and is available for all models from 6kW to 600kW. You do not need to select the model according to the maximum power during the actual test, which can greatly save your costs. The input over power and loading time are relevant with the temperature of the electronic load. For example: below 30℃, IT8400 supports double power loading within 3 seconds. This makes it suitable for instantaneous high-power discharge tests of motors and batteries. For example, simulating the starting of a DC motor, simulating the transient overload characteristics of some power supplies, or instantaneously discharging a high-power battery or fuel cell.


Higher current rise and fall speed and dynamic speed

Dynamic testing is one of the necessary test items for power supplies. The dynamic mode of IT8400 can be used to measure it.Set the current level, time, rising and falling slope and repeat times, and then you can check if the power supply still works stably when the load current is changed stepwise. IT8400 supports the programmable dynamic loading mode with 25kHz. The minimum current rise and fall time is 15us. When the loading current changes continuously, the internal monitoring and circuit can minimize the current waveform distortion. So it is well used for transient response test of switching power supply and dynamic discharge test of battery.

3 Current measurement range

All models of IT8400 series have 3 current measurement ranges. For example, the 1200V, 6kW model, its current can reach 1.5A. In addition, the high resolution (40uA at most ) and high accuracy (1.5mA at most )
enable it to be widely used in the tests such as solar, power semiconductor devices, automotive electronics and so on.
