Home > Product > series > DC Electronic Load

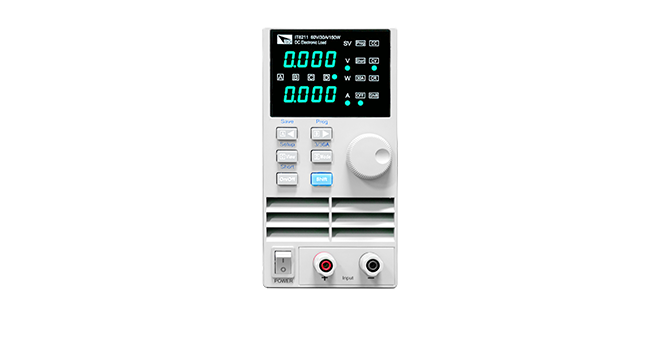

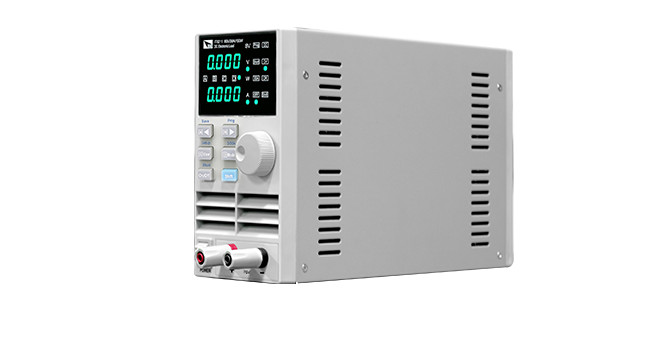

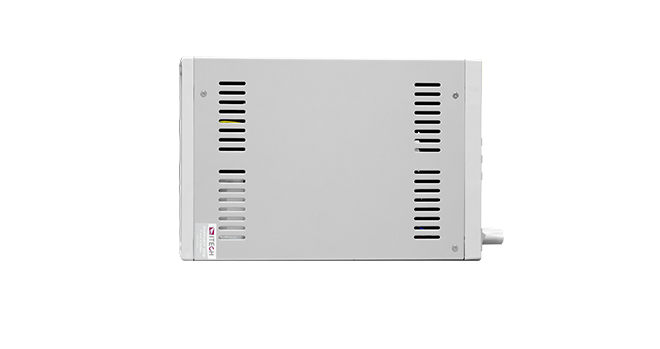

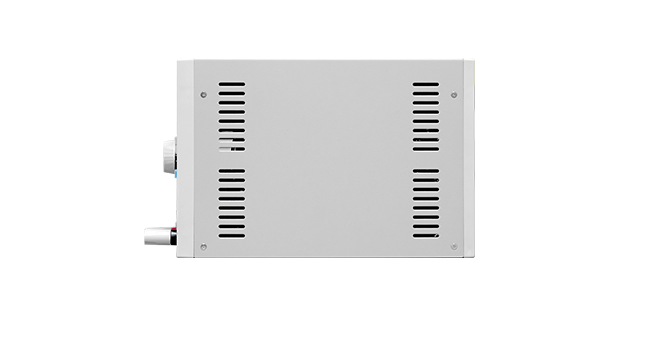

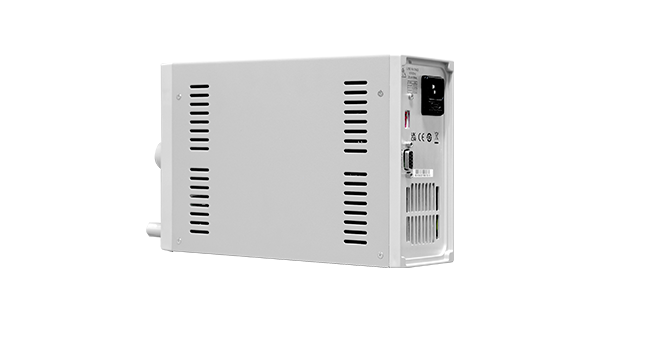

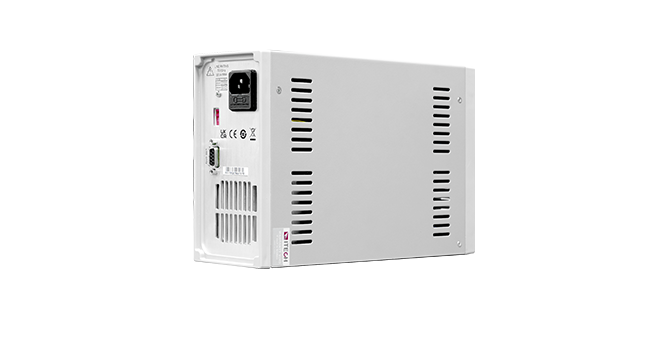

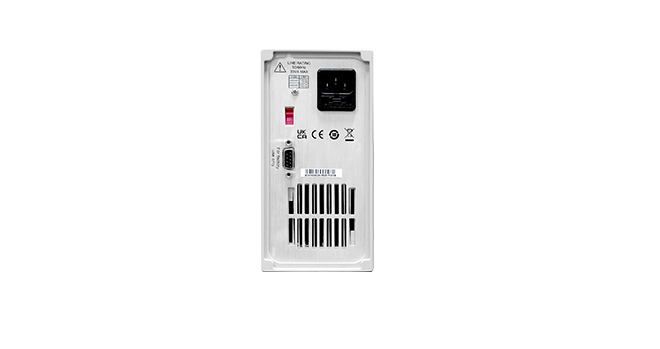

IT8211 Digital Control DC Electronic Load

IT8211 series economical electronic load, with the highest cost/performance ratio and small size, they are widely used in production testing lines and maintainance lines etc. Resolution 1mV/1mA ensures the accurate measurement result. IT8211 series has programmable performance, and can quickly recall 4 * 40 group memory data, panel function keys and display interface is clear, provide customers with simple operation program, easy and fast to complete a variety of complex tests. The series has CV, CC and CR mode, and short circuit test function, it is the most cost-effective electronic load products.

Product catalog
Product video
Related technical articles
User's Manual

Find a product

Model Voltage Current Power Resolution Accuracy Interface Size: IT8211

60V

30A

150W

1mV/1mA

≤0.03%+12mV/ ≤0.05%+20uA

——

88mmW*175mmH*282mmD

inquiry

Show all

* The above specifications are subject to change without prior notice.

Product Features

Features

♦ Digital controlling electronic load
♦ LED display
♦ With fast rotary encoder input
♦ 19-inch standard cabinet can be installed
♦ Three operating modes: CV / CC / CR
♦ 4 * 40 group memory capacity can be quickly recalled
♦ Switch high and low current
