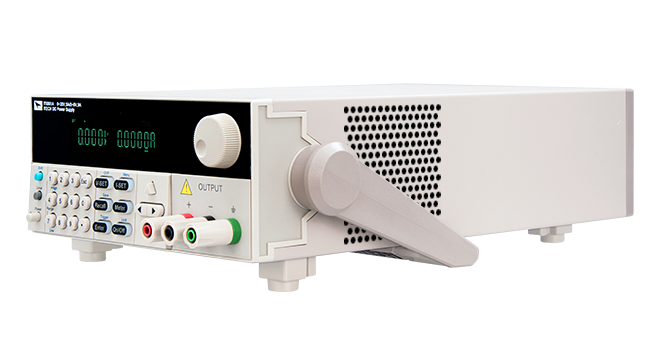

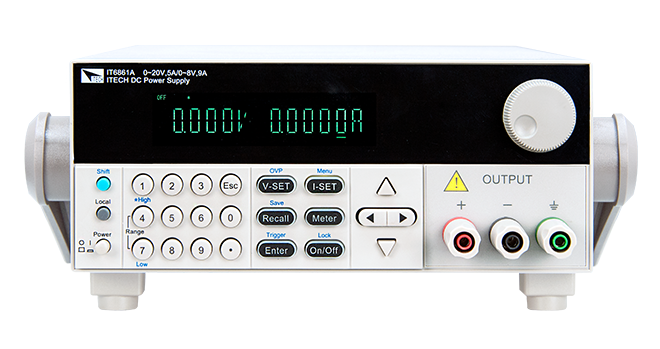

IT6800A/B Dual-range Programmable DC Power Supply

IT6860A series (72~180W) programming DC power supply offers dual-range voltage switch for your choice, which can replace two ordinary ones, greatly saving your cost and operation space. At the same time, IT6860A supports panel List programming and software operation via computer to meet more communication demands. IT6860A series is suited for laboratory testing, online production test, maintenance testing, etc.

Find a product
Model
Voltage
Current
Power
Resolution
Accuracy
Interface
Size
IT6861A
Range1:20V;Range2:8V;
Range1:5A;Range2:9A;
Range1:100W;Range2:72W;
1mV/0.1mA
≤0.03%+12mV/ ≤0.05%+20uA
RS232/USB
½ 2U
inquiry
IT6873B
Range1:75V;Range2:32V;
Range1:2A;Range2:4A;
Range1:150W;Range2:128W;
1mV/0.1mA
≤0.03%+12mV/ ≤0.05%+20uA
RS232/USB/GPIB
½ 2U
inquiry
IT6873A
Range1:75V;Range2:32V;
Range1:2A;Range2:4A;
Range1:150W;Range2:128W;
1mV/0.1mA
≤0.03%+12mV/ ≤0.05%+20uA
RS232/USB
½ 2U
inquiry
IT6872B
Range1:35V;Range2:15V;
Range1:4A;Range2:7A;
Range1:140W;Range2:105W;
1mV/0.1mA
≤0.03%+12mV/ ≤0.05%+20uA
RS232/USB/GPIB
½ 2U
inquiry
IT6872A
Range1:35V;Range2:15V;
Range1:4A;Range2:7A;
Range1:140W;Range2:105W;
1mV/0.1mA
≤0.03%+12mV/ ≤0.05%+20uA
RS232/USB
½ 2U
inquiry
IT6863B
Range1:72V;Range2:32V;
Range1:1.5A;Range2:3A;
Range1:108W;Range2:96W;
1mV/0.1mA
≤0.03%+12mV/ ≤0.05%+20uA
RS232/USB/GPIB
½ 2U
inquiry
IT6863A
Range1:72V;Range2:32V;
Range1:1.5A;Range2:3A;
Range1:108W;Range2:96W;
1mV/0.1mA
≤0.03%+12mV/ ≤0.05%+20uA
RS232/USB
½ 2U
inquiry
IT6862B
Range1:32V;Range2:12V;
Range1:3A;Range2:6A;
Range1:96W;Range2:72W;
1mV/0.1mA
≤0.03%+12mV/ ≤0.05%+20uA
RS232/USB/GPIB
½ 2U
inquiry
IT6862A
Range1:32V;Range2:12V;
Range1:3A;Range2:6A;
Range1:96W;Range2:72W;
1mV/0.1mA
≤0.03%+12mV/ ≤0.05%+20uA
RS232/USB
½ 2U
inquiry
IT6861B
Range1:20V;Range2:8V;
Range1:5A;Range2:9A;
Range1:100W;Range2:72W;
1mV/0.1mA
≤0.03%+12mV/ ≤0.05%+20uA
RS232/USB/GPIB
½ 2U
inquiry
IT6874B
Range1:150V;Range2:60V;
Range1:1.2A;Range2:2A;
Range1:180W;Range2:120W;
1mV/0.1mA
≤0.03%+12mV/ ≤0.05%+20uA
RS232/USB/GPIB
½ 2U
inquiry
IT6874A
Range1:150V;Range2:60V;
Range1:1.2A;Range2:2A;
Range1:180W;Range2:120W;
1mV/0.1mA
≤0.03%+12mV/ ≤0.05%+20uA
RS232/USB
½ 2U
inquiry
Show all
* The above specifications are subject to change without prior notice.
Product Features
Dual range output
Convenient data entry via knob or numerical key pad
High accuracy and high resolution
Remote sense
Output voltage and current values accordance with procedure
Adjust voltage and current via Knob
Low ripple and low noise
OVP, OTP
Built-in RS232/USB/GPIB interface  *1
Monitor software via PC

Support SCPI command, compatible IT6800 frame format protocol

*1 Only IT6800B dual range series have built-in GPIB communication interface

Functions and Advantages

Dual-range Output
IT6860A series DC power supply offers high and low voltage range for your choice. When needing high voltage output, high voltage is optional, when needing high current, low voltage is optional.


CV/CC automatic conversion function

With this function, the power supply can be operated continuously with the change of load from cv mode to cc mode. For the current load, the power supply operates in constant voltage mode and the power supply will provide a controlled output voltage. With the decrease of load resistance value , the output voltage drop remains constant until the current increases up to preset current Value, and then the conversion occurs. At this time the power supply becomes constant current output, and the output voltage will be reduced in proportion according to the further reduce of load resistance value. When the current value is lower than the set value, the power supply returns to the constant voltage mode.



Output timer Function
This series supports output timer function, in ON mode, the indicator light “Timer” will be lit on the VFD screen. When output of power supply is opened, timer will begin to work, after reaching the definite time, output will be off automatically. Timing output time range is 0.1s~9999.9s or 0.1m~9999.9m.


Options & Accessories
  • IT-E9005(Optional)
    ITECH Warranty up to 5 years
  • IT-E9003(Optional)
    ITECH Warranty up to 3 years
  • CD (accessory)
    With user manual and communica...
  • USB
    For USB port communication
  • AC power cord (accessory)
    AC power cord (accessory)
  • IT-E151A (Optional)
    19'' Rack mount kit
  • IT-E151 (Optional)
    19'' Rack mount kit
  • IT-E30110-AB (Optional)
    10A/1m/Alligator clip - Banana...
  • IT-E30110-BB (Optional)
    10A/1m/Banana plug - Banana pl...
  • IT-E30110-BY (Optional)
    10A/1m/Banana plug - Y termina...
